simtools-calculate-incident-angles#

Calculate photon incident angles on focal plane and primary/secondary mirrors.

Creates photon files with additional columns for incident angles calculation. Outputs files and histograms of the incidence angles at the focal plane, primary mirror, and if available, secondary mirror. Optional debug plots can be also generated. Note that this application does not include a full raytracing of telescope structures, and their non symmetric shadowing at off-axis angles.

Example usage#

simtools-calculate-incident-angles \
    --off_axis_angles 0 1 2 3 4 \
    --source_distance 10 \
    --number_of_photons 1000000 \
    --model_version 6.0.0 \
    --telescope MSTN-04 \
    --site North

Command line arguments#

  • off_axis_angles (float, optional)

    One or more off-axis angles in degrees (space-separated). Default: [0.0].

  • source_distance (float, optional)

    Source distance in kilometers. Default: 10.0.

  • number_of_photons (int, optional)

    Number of photons of the light source to trace per run. Default: 10000.

  • perfect_mirror (flag, optional)

    Assume perfect mirror shape/alignment/reflection.

  • debug_plots (flag, optional)

    Generate additional debug plots (radius histograms, XY heatmaps, radius vs angle).

  • calculate_primary_secondary_angles / no-calculate_primary_secondary_angles

    Include or skip angles on primary/secondary mirrors. Default: include.

The application writes:

  • imaging list (photons) file

  • stars list file

  • a histogram of incident angles (PNG)

  • a results table in ECSV format

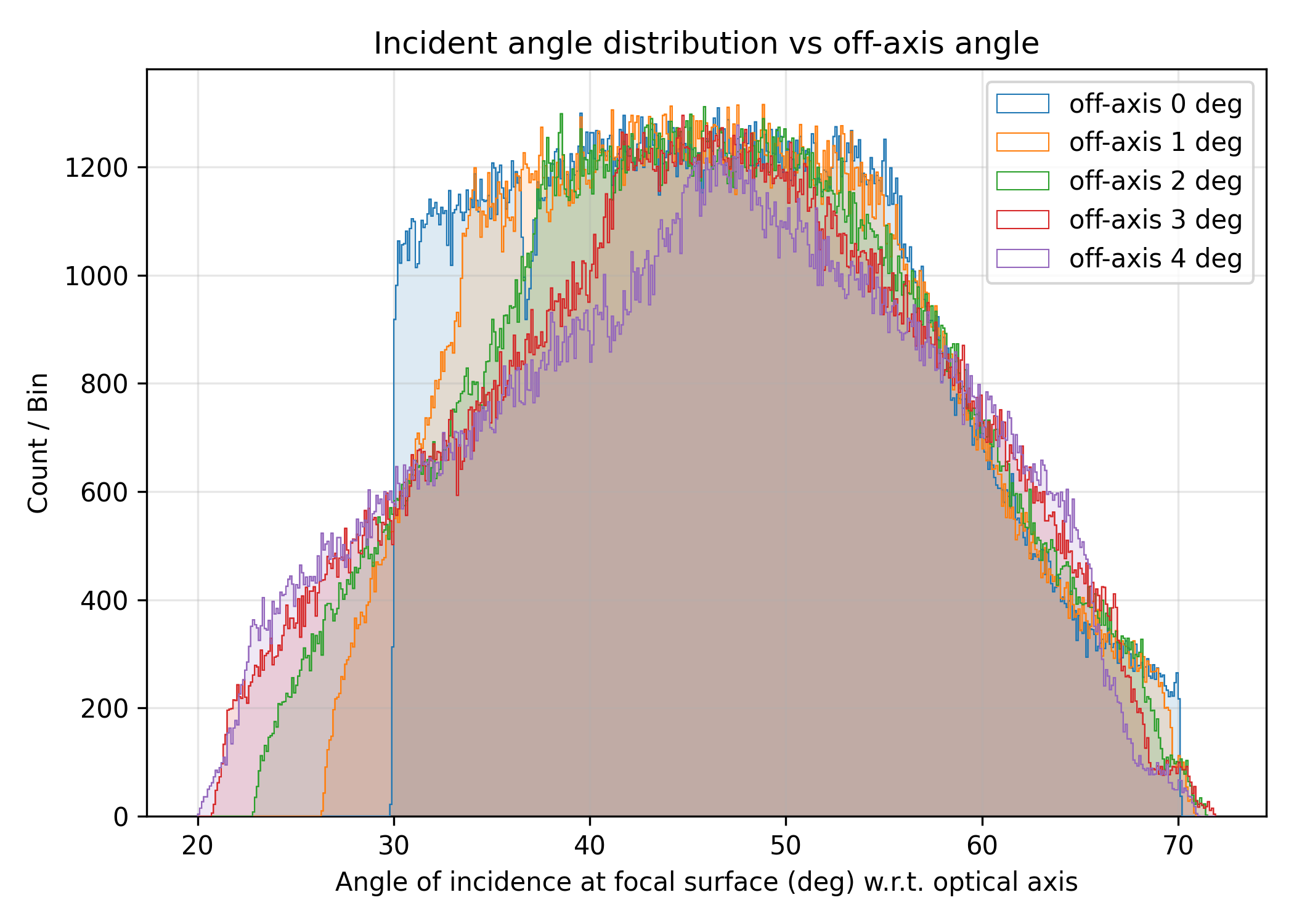

Example of a focal-plane incident angle plot for a SST:

../../_images/incident_angles_multi_calculate_incident_angles_SSTS-04.png

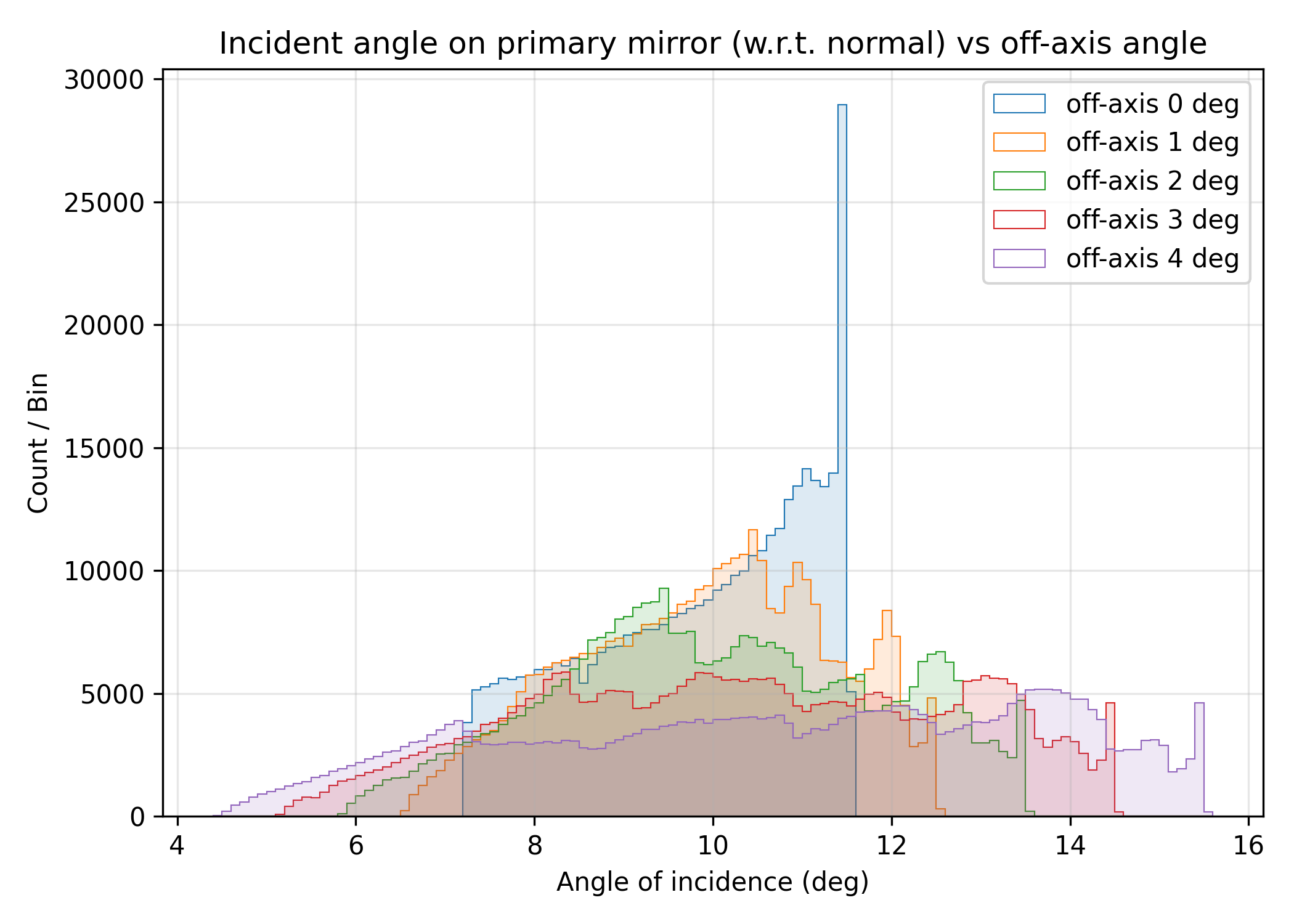

Example of a primary mirror incident angle plot for a SST:

../../_images/incident_angles_primary_multi_calculate_incident_angles_SSTS-04.png

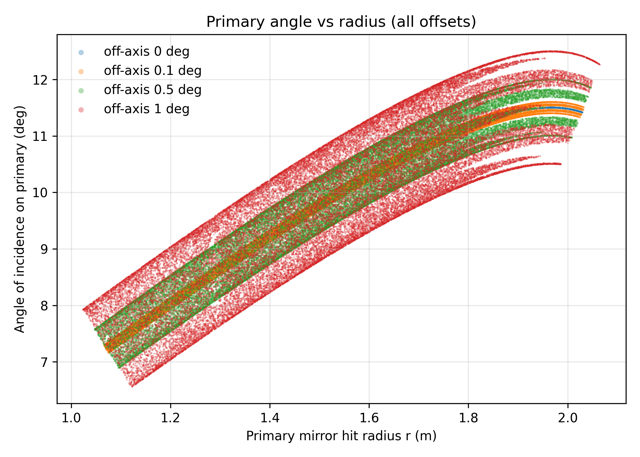

Note also the relation between radius and primary mirror incident angles, and how this relates to the peak seen in the primary mirror incident angle distribution:

../../_images/primary_angle_vs_radius.png

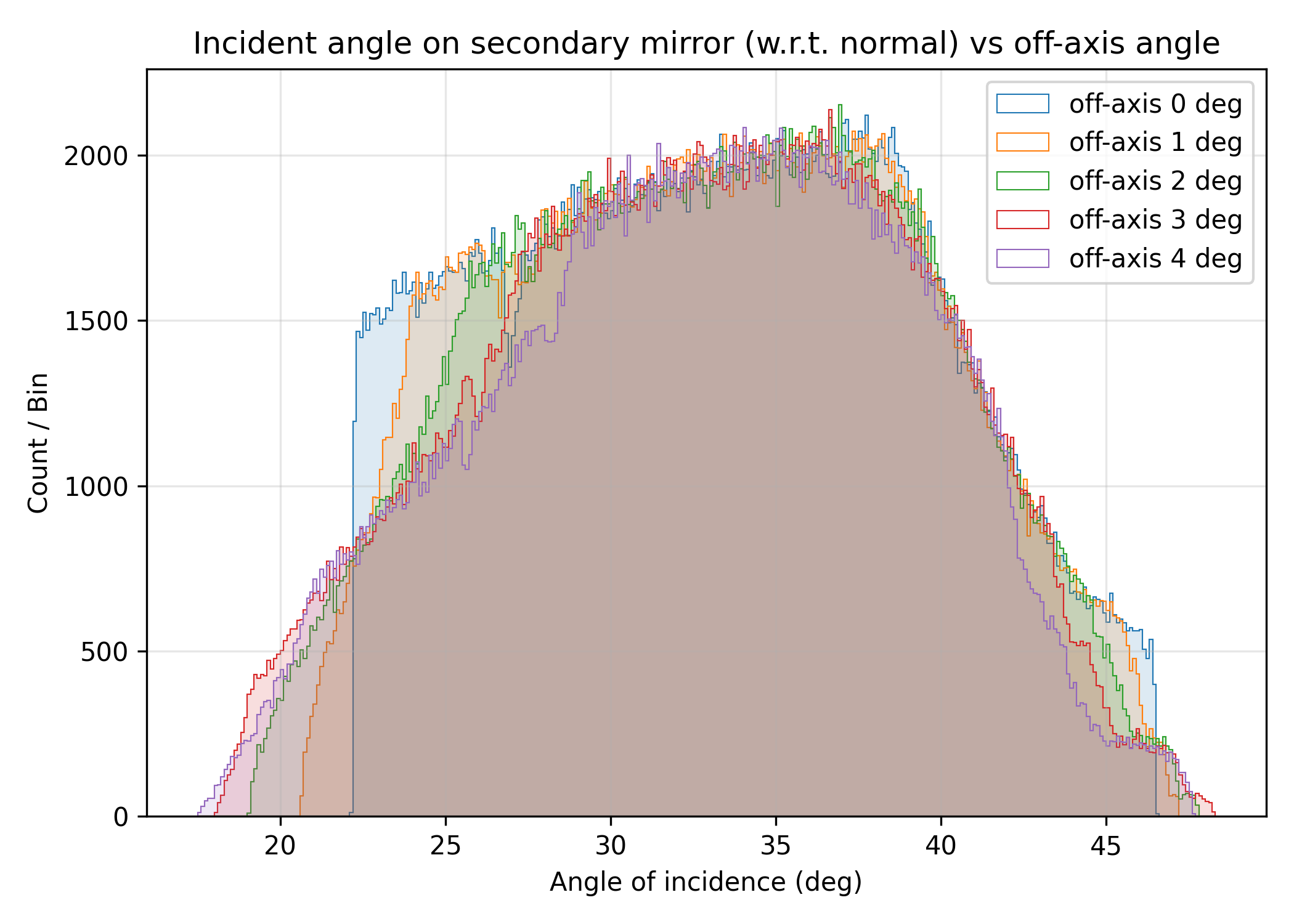

Example of a secondary mirror incident angle plot for a SST:

../../_images/incident_angles_secondary_multi_calculate_incident_angles_SSTS-04.png
calculate_incident_angles.main()[source]#

Calculate photon incident angles on focal plane and primary/secondary mirrors.
